Sign in with Keycloak

Keycloak is an open-source identity provider you can host yourself. In this tutorial you run it in Docker on your own machine, connect Dopbase to it, and sign in to the Admin UI as a member through Keycloak. Everything runs on localhost, so you don't need a domain or a TLS certificate to follow along. Move to production lists what changes on a real server.

For how single sign-on works with any provider, including how accounts are matched and what Require single sign-on does, see Single sign-on.

How the pieces fit

Dopbase never sees the Keycloak password. The browser signs in at Keycloak, Keycloak sends it back to Dopbase with a one-time code, and the Dopbase server trades that code for an ID token that says who signed in.

The tutorial uses these values. Keep them handy:

What	Value
Keycloak admin console	http://localhost:8080/admin (admin/admin)
Keycloak realm	dopbase
Keycloak client ID	dopbase
Dopbase	http://localhost:7480
Redirect URI	http://localhost:7480/api/v1/auth/sso/callback
Issuer URL	http://localhost:8080/realms/dopbase

What you need

• Docker.
• The dopbase command. See the quick start to install it.
• About fifteen minutes.

This tutorial was tested with Keycloak 26.4.7, the version the command in step 1 pins. The screenshots come from that version. Other Keycloak releases can move menus or rename buttons, but the settings Dopbase needs are standard OpenID Connect ones, so look for the same names.

1. Start Keycloak

Run Keycloak in development mode on port 8080, with admin as both the admin username and password:

docker run --name keycloak -p 8080:8080 \
  -e KC_BOOTSTRAP_ADMIN_USERNAME=admin \
  -e KC_BOOTSTRAP_ADMIN_PASSWORD=admin \
  quay.io/keycloak/keycloak:26.4.7 start-dev

Wait for a line that ends with Listening on: http://0.0.0.0:8080. Development mode uses plain HTTP and keeps its data inside the container, which is fine for a trial and wrong for anything else.

2. Start Dopbase

Start a separate Dopbase instance for the trial, so it doesn't touch a real one:

DOPBASE_ROOT_EMAIL=root@example.com dopbase server start \
  --data-dir ./dopbase-sso-demo \
  --port 7480 \
  --public-url http://localhost:7480

Dopbase creates the root account and prints its password once. Copy it.

Single sign-on needs an HTTPS public URL, with one exception: localhost. That is why this tutorial works without a certificate. Run Dopbase directly on your machine, not in a container. Inside a container, localhost points at the container itself, so Dopbase couldn't reach Keycloak at http://localhost:8080.

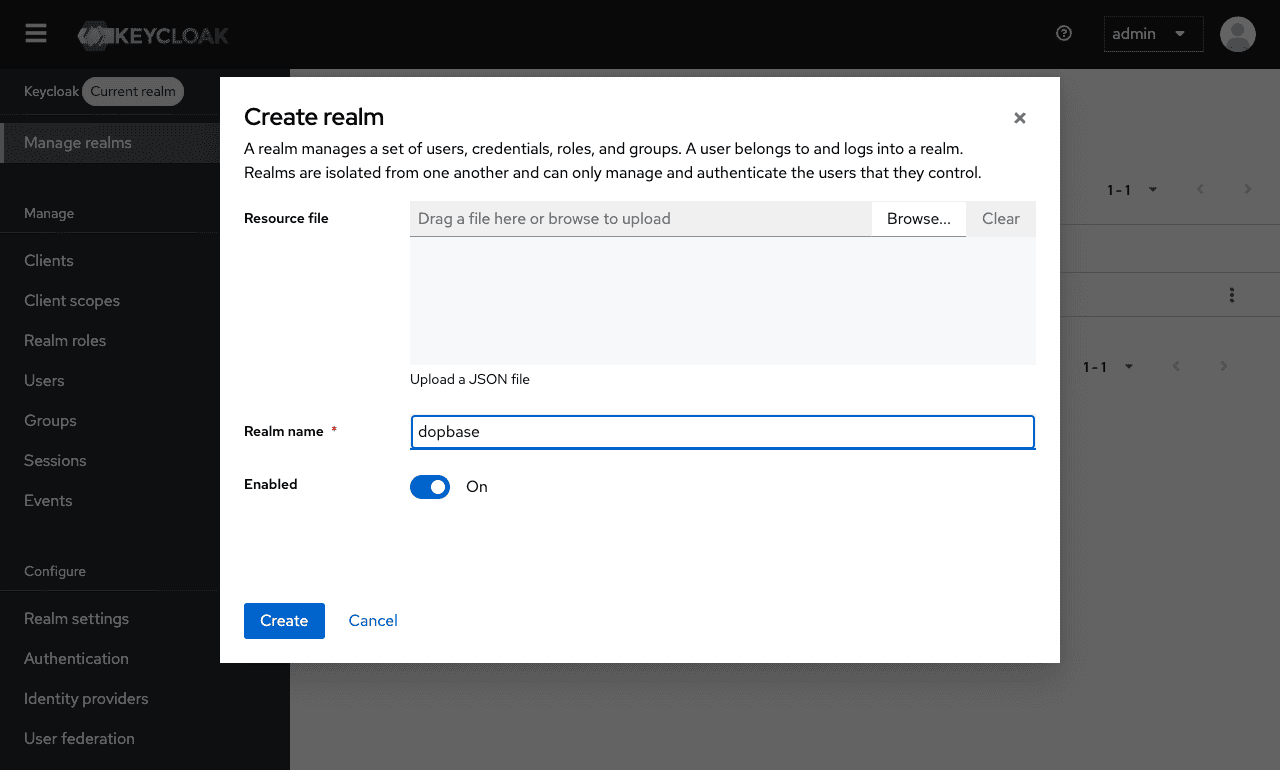

3. Create a realm in Keycloak

Open http://localhost:8080/admin and sign in as admin with password admin. A realm is a separate set of users and applications. The built-in master realm is for administering Keycloak itself, so make a new one:

1. Select Manage realms, then Create realm.
2. Enter dopbase as the Realm name and select Create.

The top of the sidebar now shows dopbase as the current realm. Keep it selected for the rest of the Keycloak steps.

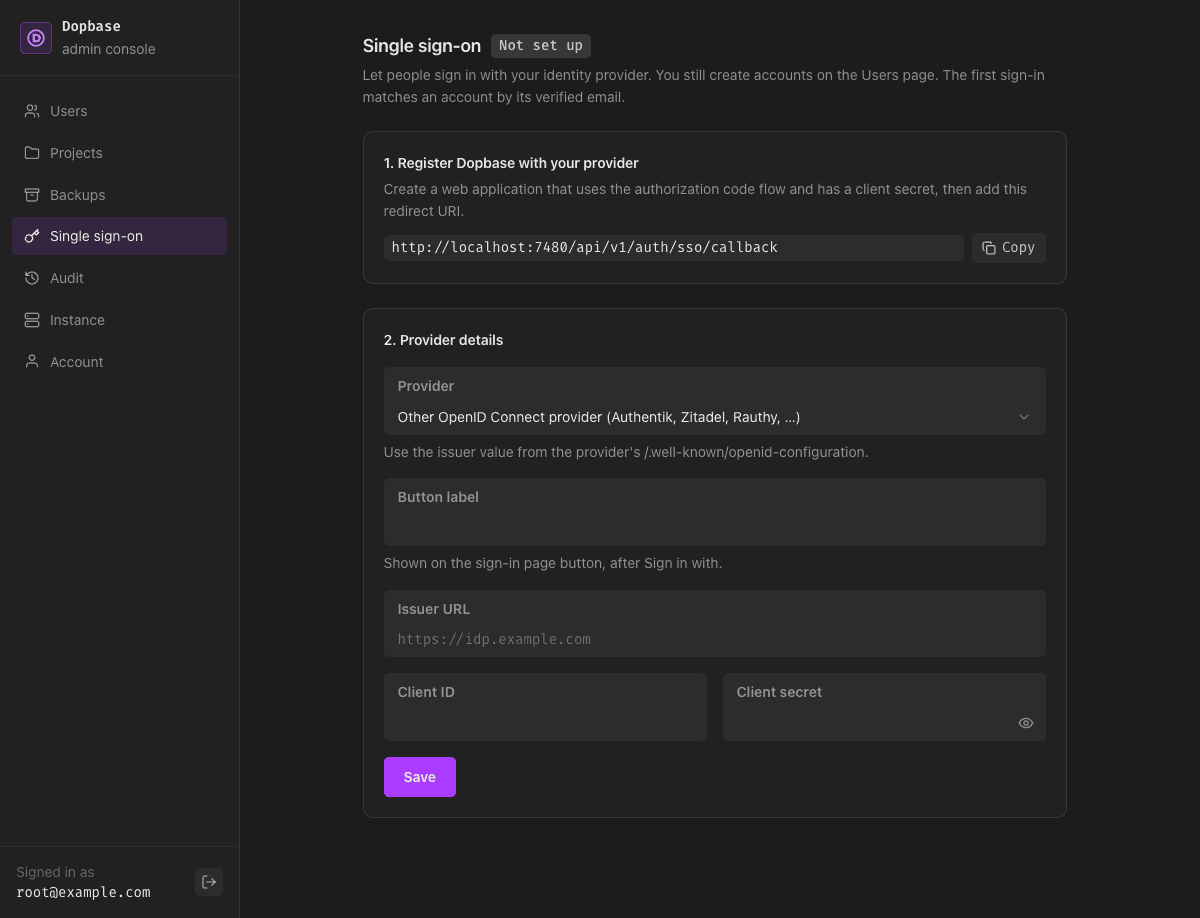

4. Copy the redirect URI from Dopbase

In another tab, open http://localhost:7480 and sign in as root@example.com with the password from step 2. Open Single sign-on and copy the redirect URI under 1. Register Dopbase with your provider.

5. Create the Dopbase client in Keycloak

A client is how Keycloak knows about an application that signs people in. Back in Keycloak, open Clients and select Create client. The wizard has three pages.

General settings. Leave Client type as OpenID Connect. Enter dopbase as the Client ID and Dopbase as the Name, then select Next.

Capability config. Turn on Client authentication. This gives the client a secret, which Dopbase needs. Leave Standard flow checked and the other flows unchecked. Set PKCE Method to S256: Dopbase always sends a PKCE challenge, so Keycloak can insist on one. Select Next.

Login settings. Paste the redirect URI from step 4 into Valid redirect URIs. Leave the other fields empty and select Save.

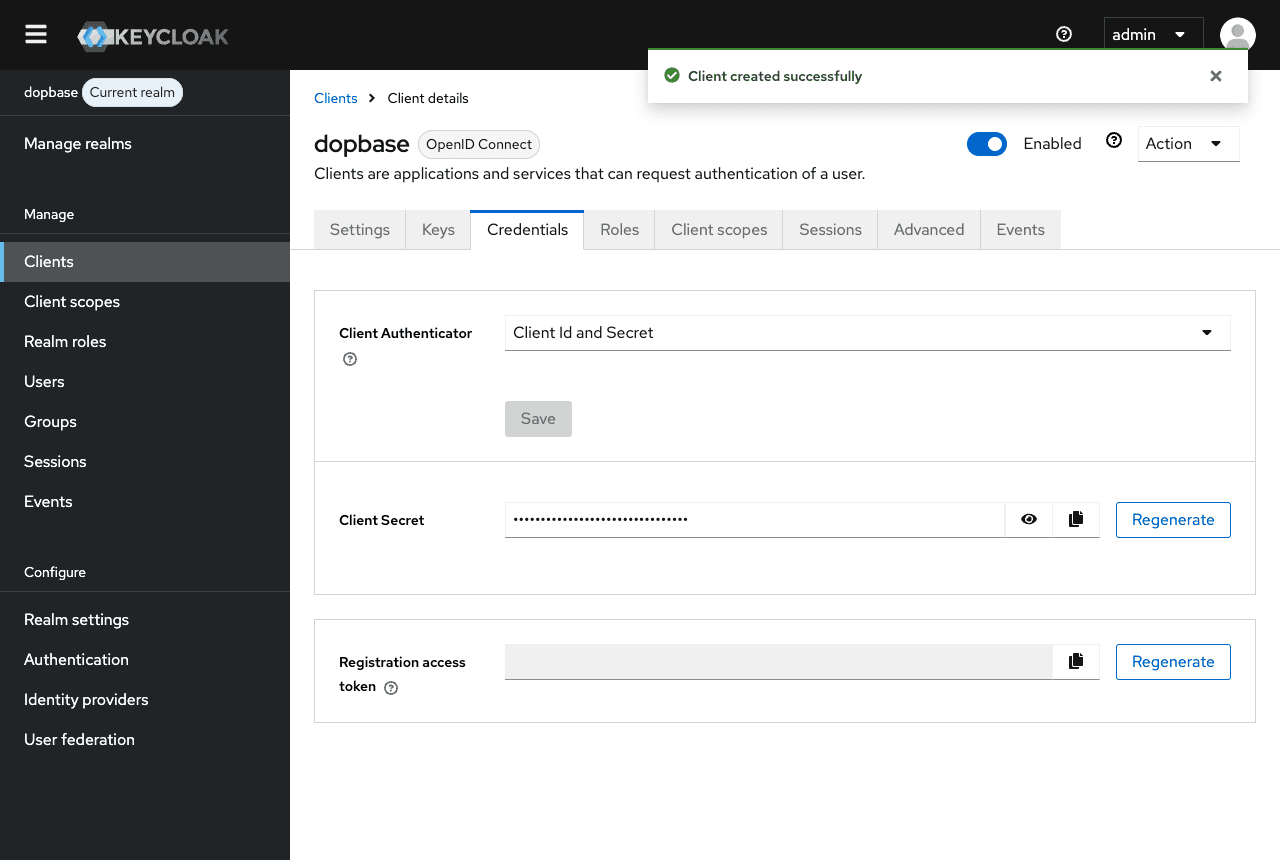

6. Copy the client secret

Keycloak opens the new client. Select the Credentials tab and copy the Client Secret with the copy button next to it.

7. Create users in Keycloak

You need two Keycloak users: one for a member, and one for yourself as root.

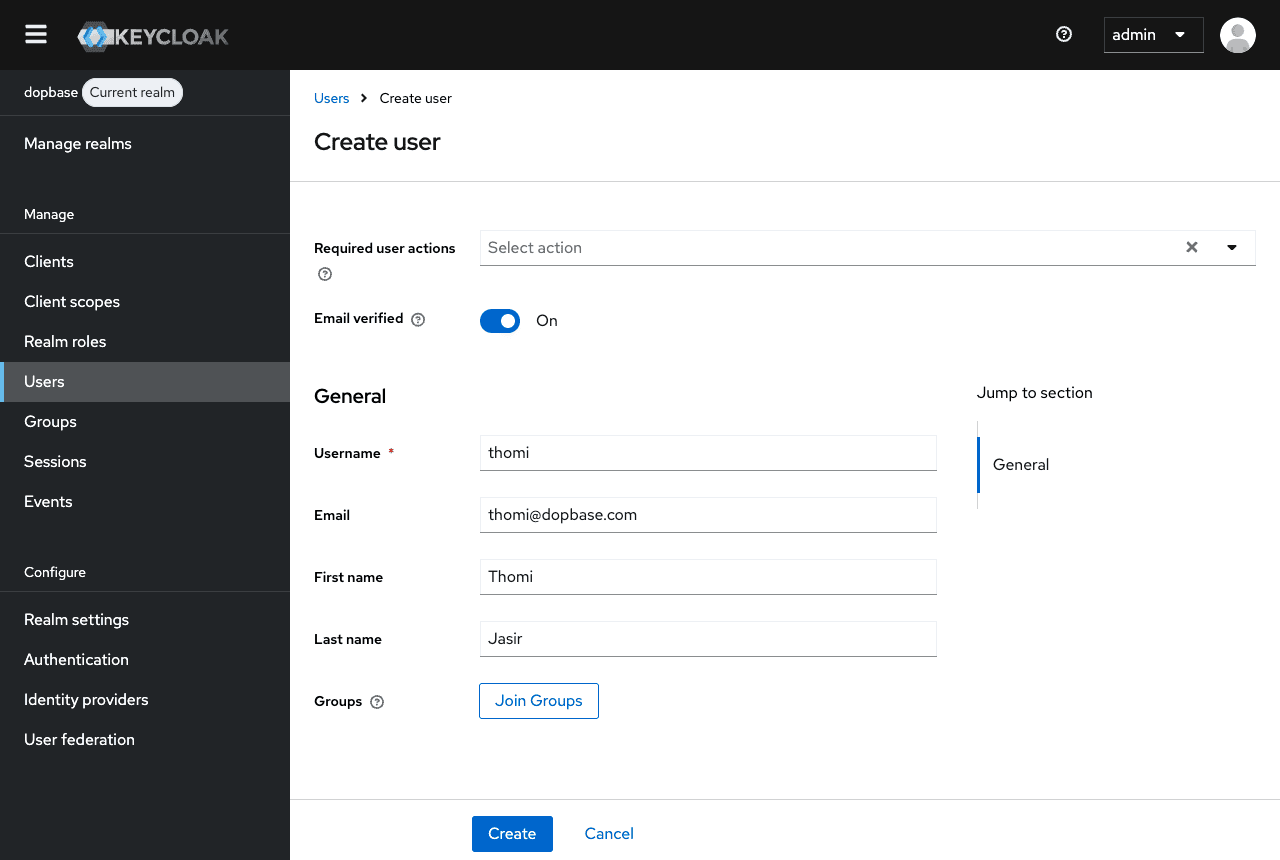

Start with the member. Open Users and select Create new user:

1. Turn on Email verified.
2. Enter thomi as the Username, thomi@dopbase.com as the Email, Thomi as the First name, and Jasir as the Last name.
3. Select Create.

The first time Thomi signs in, Dopbase finds the account by email, and it only trusts an email the provider marks as verified. If Email verified is off, Dopbase refuses the sign-in.

Fill in both names too. Keycloak requires a first and last name by default, and a user without them gets an "Update Account Information" form at Keycloak before reaching Dopbase.

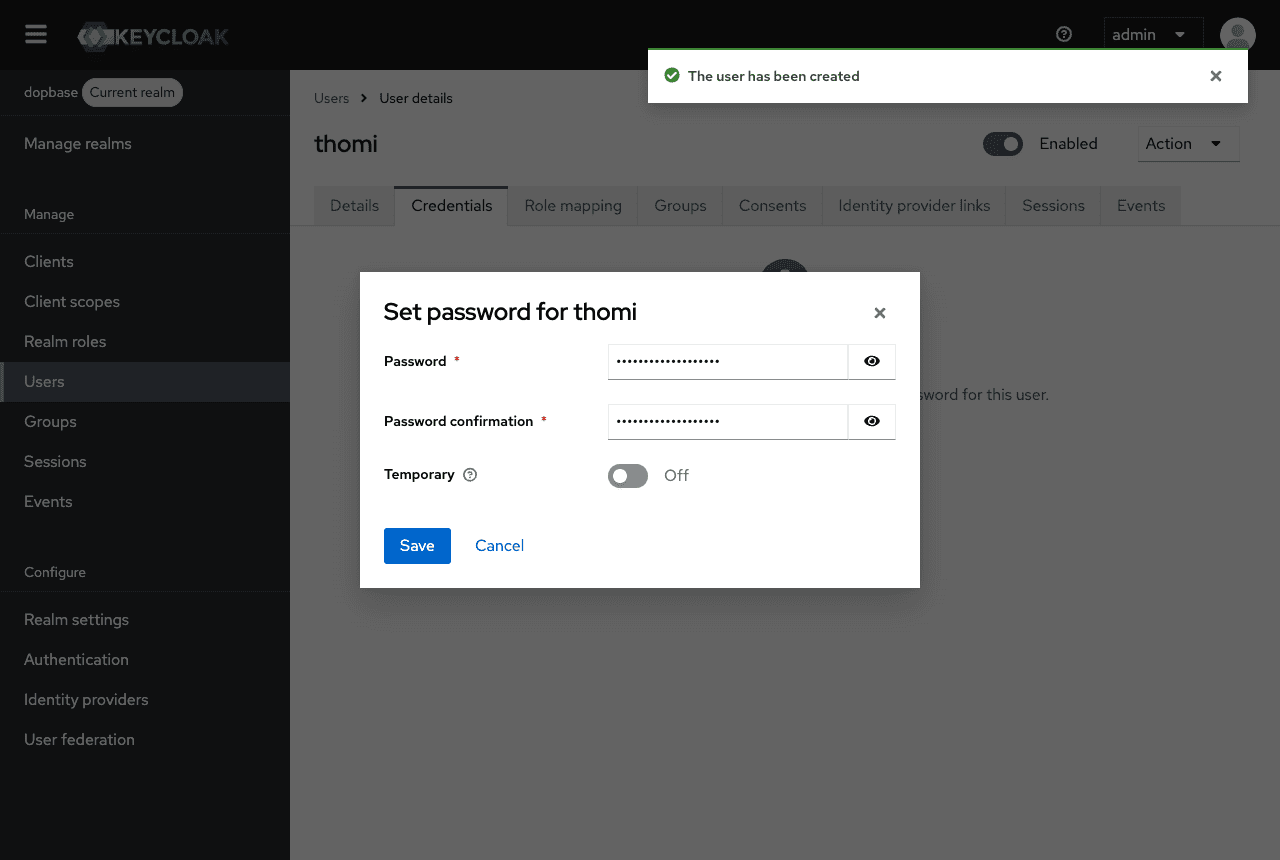

Give Thomi a password: open the Credentials tab, select Set password, enter a password twice, and turn Temporary off so Keycloak doesn't ask for a new one at the first sign-in. Select Save.

Now create a second user the same way for yourself, for example root, and give it a password. You'll use it for the test sign-in in step 10. Its email doesn't have to match the Dopbase root account: Dopbase never matches root by email, and the test sign-in links root directly.

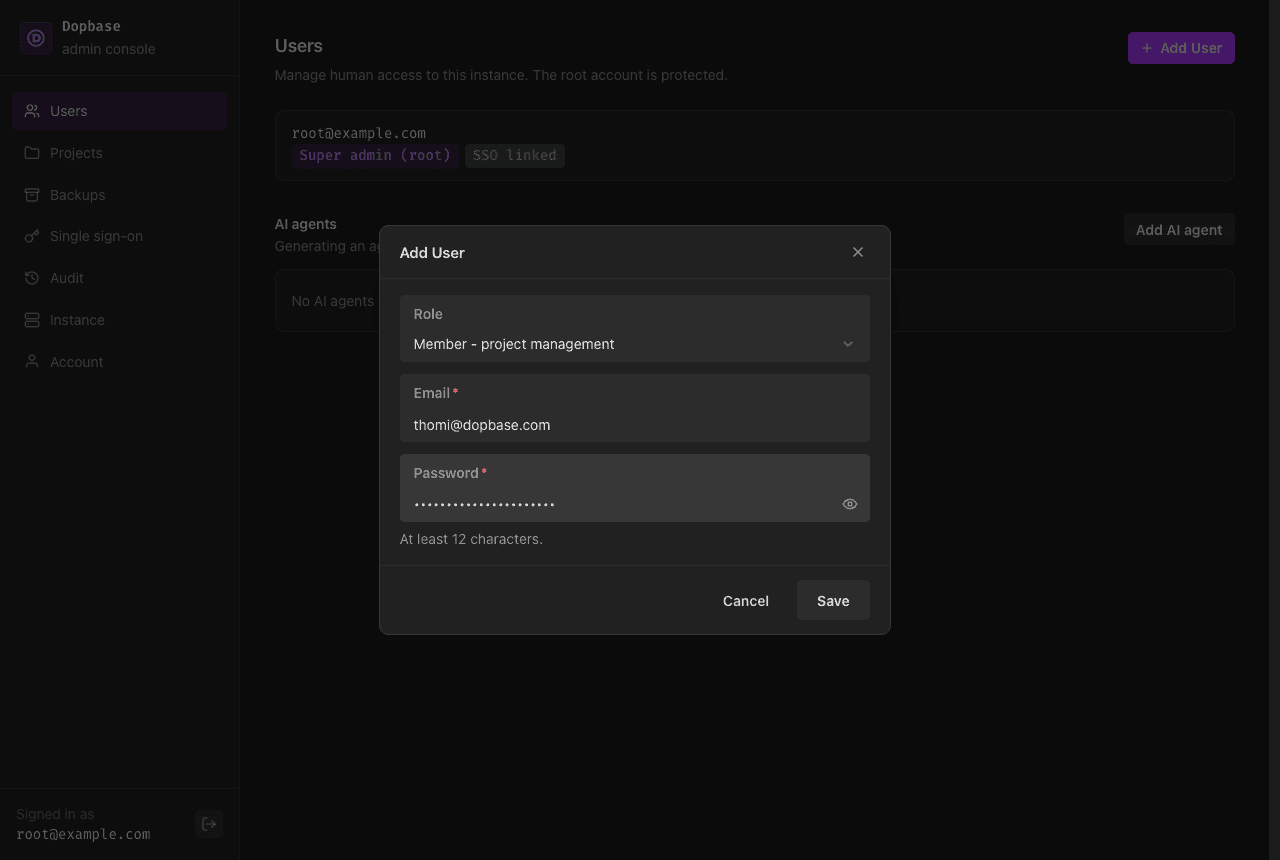

8. Create Thomi's account in Dopbase

Single sign-on only signs in people who already have a Dopbase account. In Dopbase, open Users and select Add User. Keep the Member role, enter thomi@dopbase.com, and give the account a password. Select Save.

The password is required for now. Once single sign-on is on, you can leave it empty for new accounts, and those people sign in only through Keycloak.

9. Enter the provider details in Dopbase

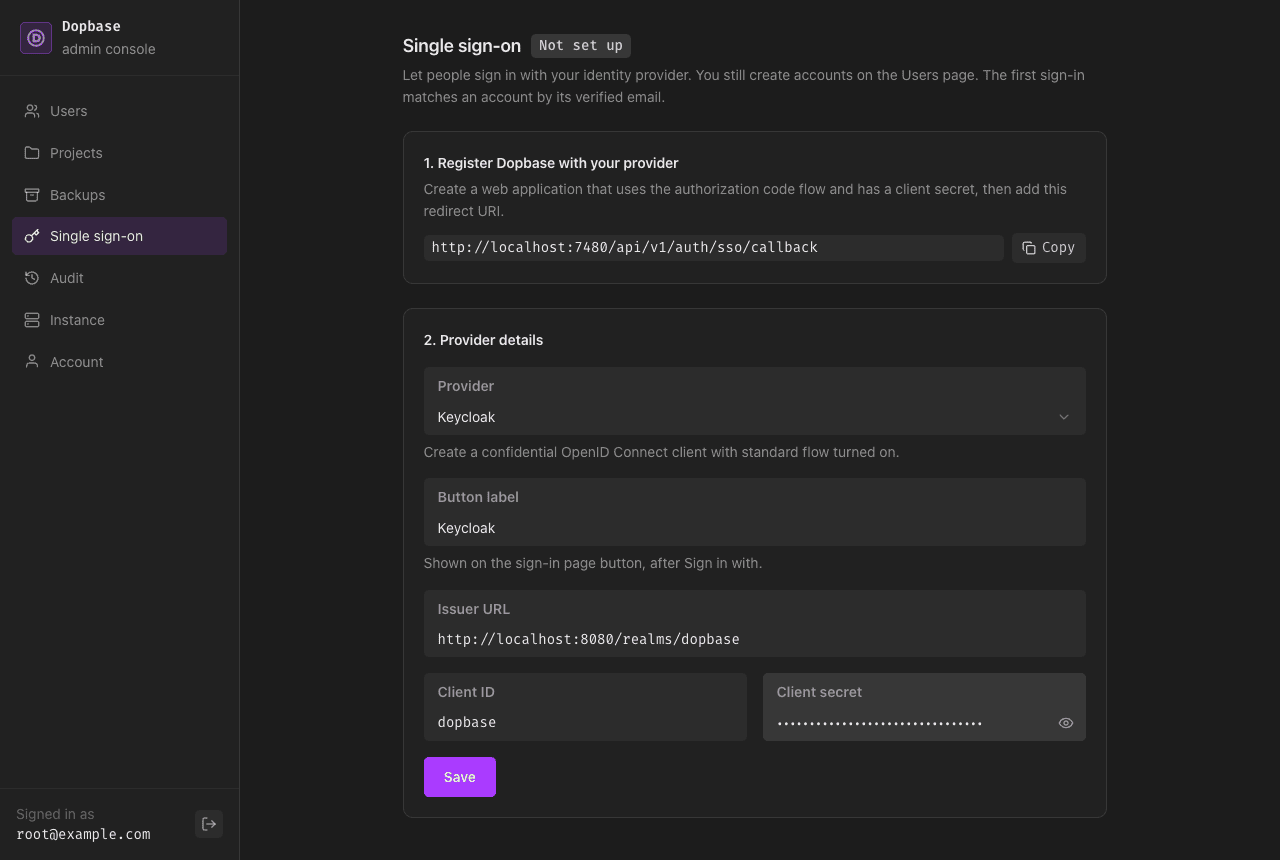

Go back to Single sign-on in Dopbase and fill in 2. Provider details:

Field	Value
Provider	Keycloak
Button label	Keycloak, filled in when you pick Keycloak
Issuer URL	http://localhost:8080/realms/dopbase
Client ID	dopbase
Client secret	The secret you copied in step 6

Select Save. Dopbase loads http://localhost:8080/realms/dopbase/.well-known/openid-configuration before it saves, so a typo in the issuer URL or realm name shows up right away.

10. Run a test sign-in

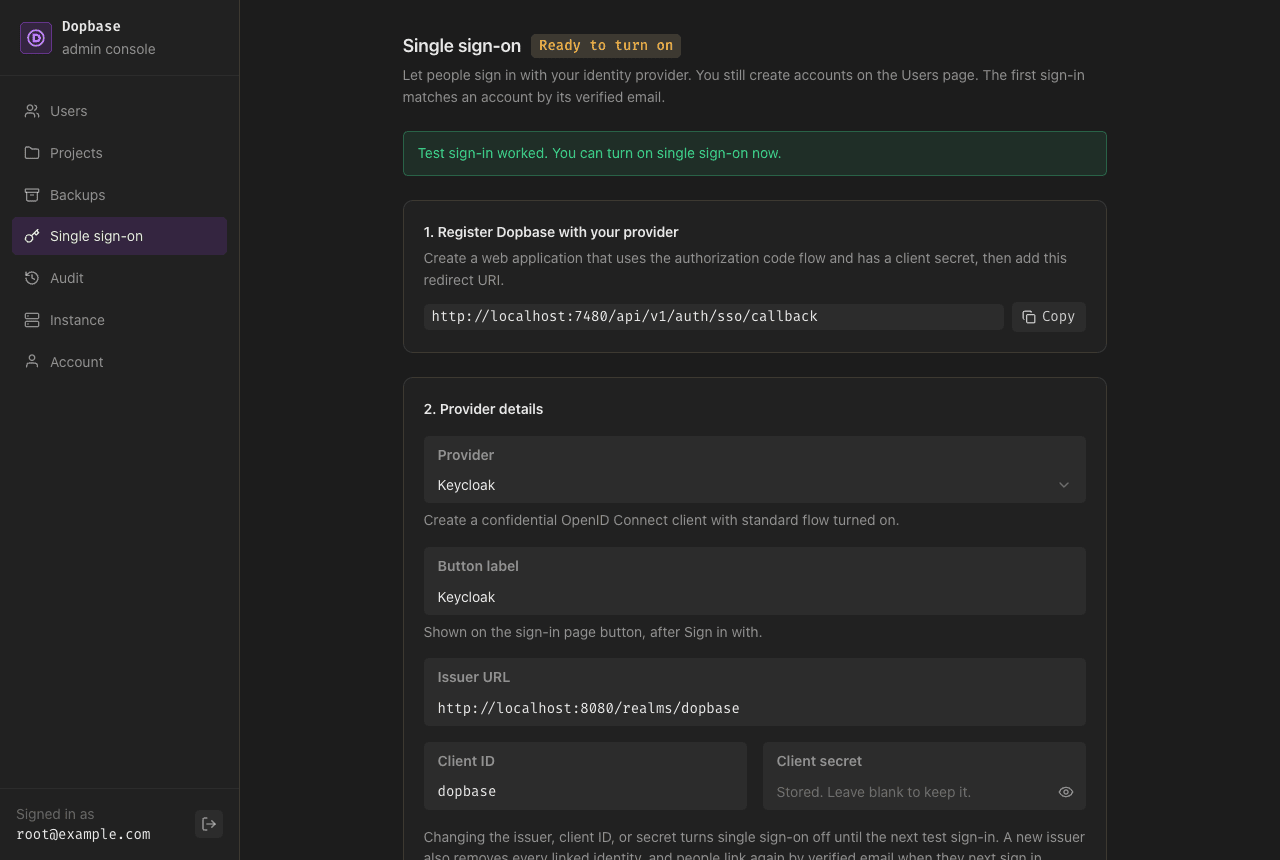

Under 3. Test, then turn on, select Test sign-in. Dopbase sends you to Keycloak. Sign in with the root Keycloak user from step 7. Keycloak sends you back, and the page says "Test sign-in worked. You can turn on single sign-on now." The badge next to the title changes to Ready to turn on.

The test linked your root account to that Keycloak user and proved the client ID, secret, and redirect URI all work.

11. Turn it on and sign in as Thomi

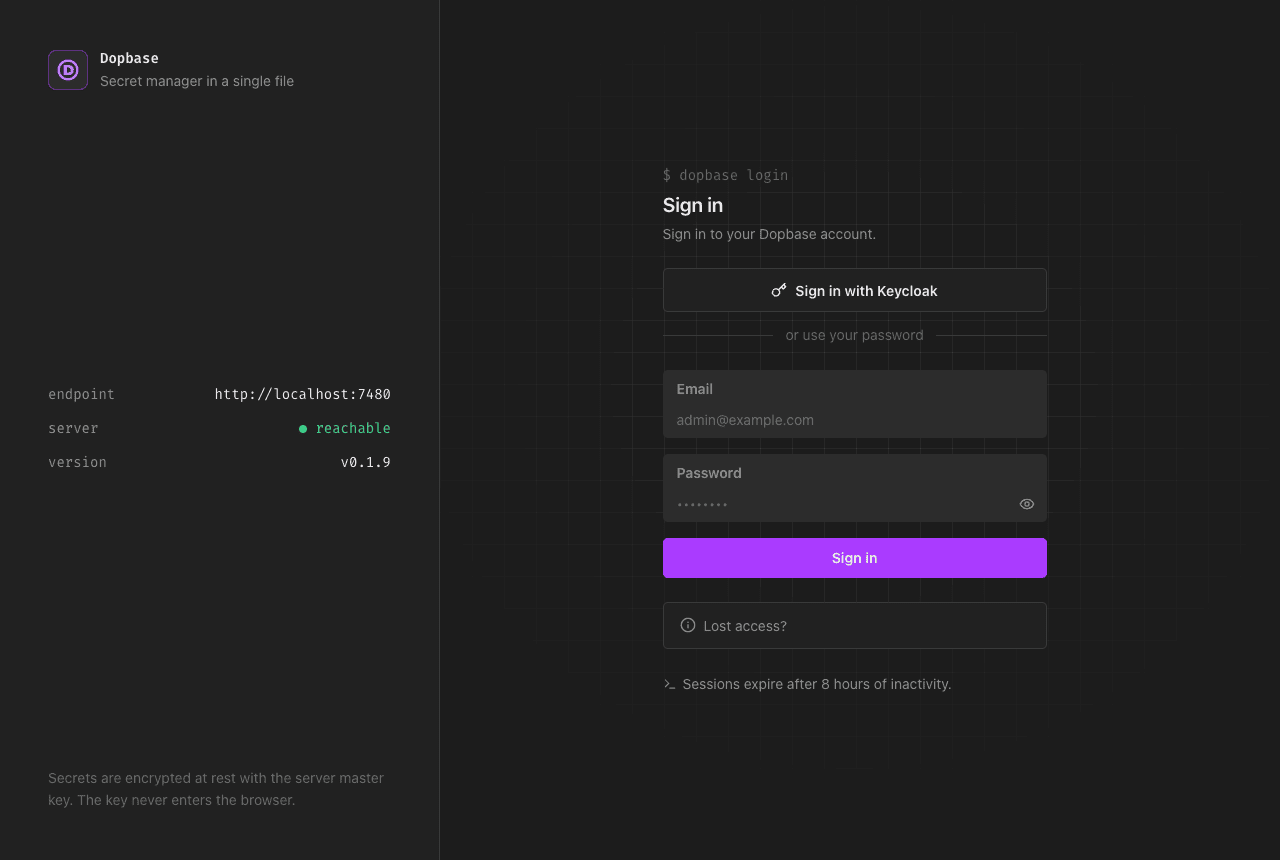

Select Turn on. Then sign out, or open a private window, and go to http://localhost:7480. The sign-in page now has a Sign in with Keycloak button above the password form.

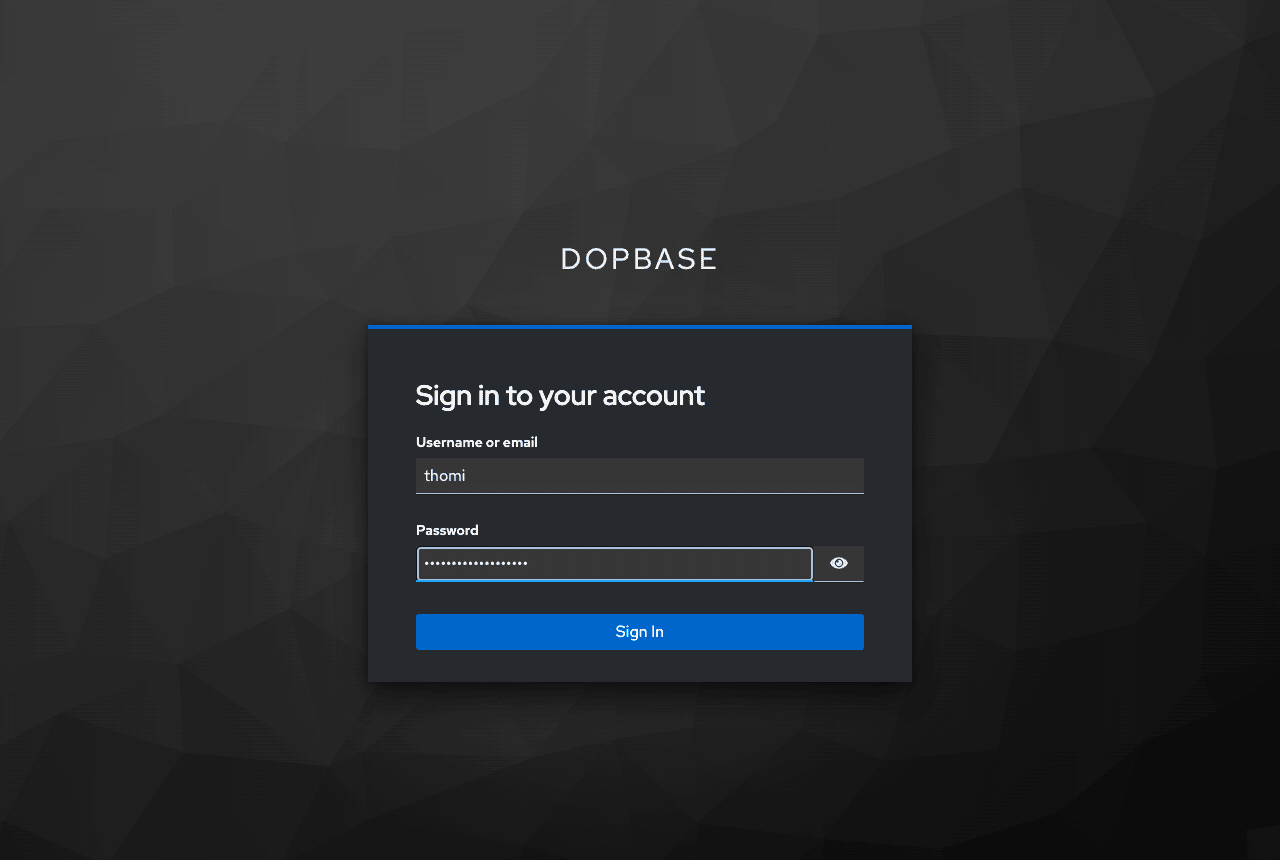

Select it. Keycloak shows its sign-in page with the realm name on top. Sign in as thomi with the password from step 7.

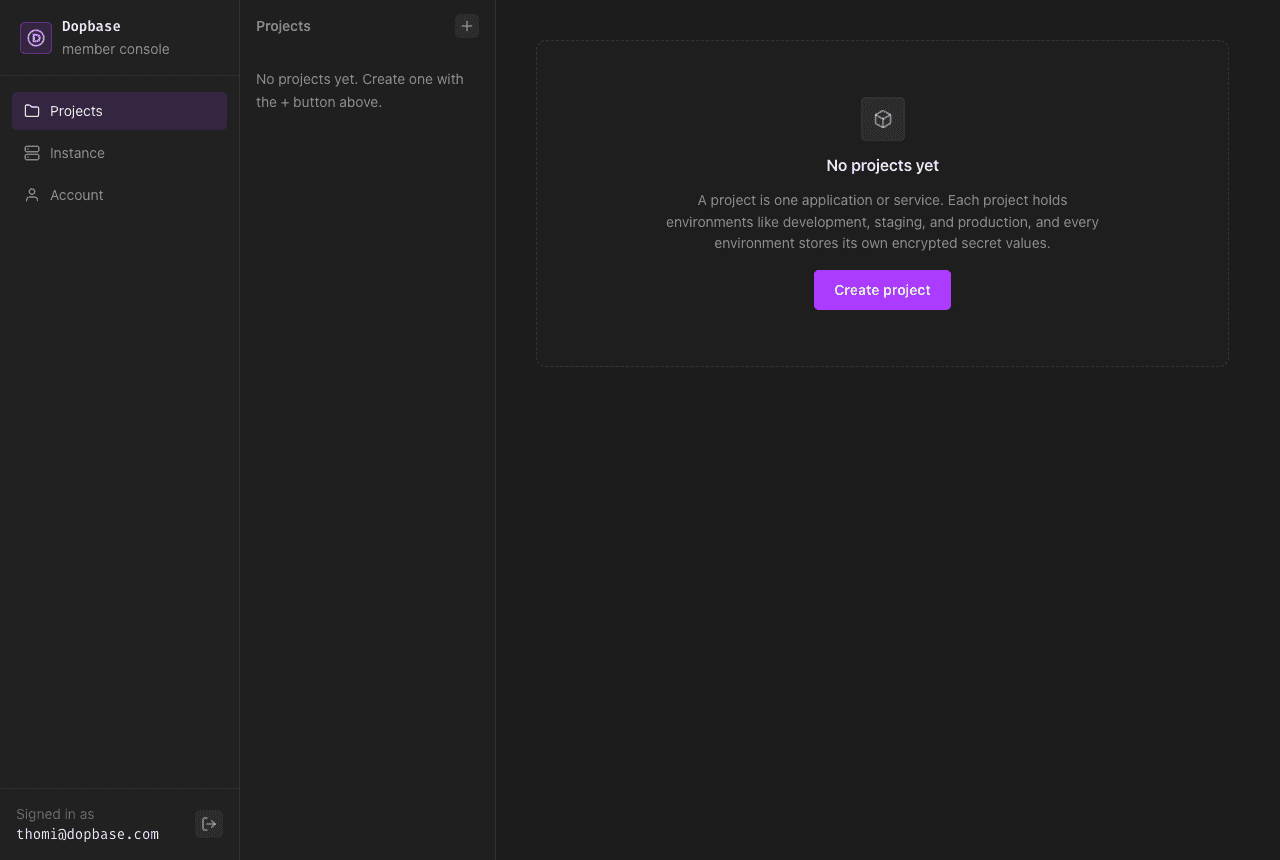

Keycloak sends you back to Dopbase, signed in as thomi@dopbase.com in the member console.

On this first sign-in, Dopbase matched Thomi by the verified email and linked the Keycloak user to the Dopbase account. From now on it recognizes Thomi by Keycloak's user ID, so changing the email in Keycloak won't lock anyone out.

Move to production

The steps are the same on real servers. What changes:

• Run Keycloak in production mode with start instead of start-dev, behind HTTPS and with its hostname set. The issuer URL becomes https://keycloak.example.com/realms/<realm>. Outside localhost, Dopbase only accepts HTTPS issuers.
• Give Dopbase an HTTPS public URL. Its redirect URI changes with it, so add the new one to Valid redirect URIs in the Keycloak client.
• Make sure Keycloak marks emails as verified, either by sending verification emails or through your user federation. Dopbase can't match a user whose email isn't verified.

Keycloak supports prompt=login, so when someone confirms a sensitive action, such as revealing a secret, Keycloak asks for their password again.

Clean up

Stop Dopbase with Ctrl+C and delete the dopbase-sso-demo directory. Then remove the Keycloak container:

docker rm -f keycloak

Troubleshooting

• Keycloak shows "Invalid parameter: redirect_uri". The redirect URI in the client's Valid redirect URIs doesn't match the one on the Dopbase Single sign-on page. Copy it again, including the port.
• Keycloak asks to "Update Account Information" after the password. The user is missing a field the realm requires, usually the last name. Fill it in on that form or on the user's Details tab in Keycloak.
• Saving in Dopbase fails before anything opens. Dopbase couldn't load Keycloak's discovery document. Check that the container is running and open http://localhost:8080/realms/dopbase/.well-known/openid-configuration in a browser. A wrong realm name gives a 404.
• "Enter the provider's HTTPS issuer URL." The issuer uses http:// with a host other than localhost. Use HTTPS, or run both servers on localhost.
• "Your identity provider hasn't verified that email…" Turn on Email verified for that user in Keycloak.
• "No Dopbase account uses that email." The email on the Keycloak user doesn't match any Dopbase account. Create the account on the Users page, or fix the email in Keycloak.
• "Single sign-on didn't work." This usually means a wrong client secret, or Client authentication is off in Keycloak. Copy the secret from the Credentials tab again, save, and run Test sign-in. The audit log records each failure as sso_login.failed with a reason.
